Sturdy And Durable Circumferential Welder Pipe Flange Socket Rod Holder Fitting Bracket Hardware Welding Lathe

Name: Sturdy And Durable Circumferential Welder Pipe Flange Socket Rod Holder Fitting Bracket Hardware Welding Lathe
Brand: XioFiTec/Hanyan
Price: 100 USD

Wholesale Sturdy And Durable Circumferential Welder Pipe Flange Socket Rod Holder Fitting Bracket Hardware Welding Lathe from china suppliers

Certification : CE ISO

Packaging Details : Wooden Box

Supply Ability : 100 Set/Sets per Month

Price : 100

Brand Name : XioFiTec/Hanyan

Model Number : XioFiTec/Hanyan

condition : New

machine type : seam welder

place of origin : Sichuan, China

brand name : HANYAN

warranty : 1 Year

weight (kg) : 280

voltage : AC220V/AC380V

current : depends

rated capacity : depends

rated duty cycle : 60%

dimensions : 1300*450*1000mm

usage : Welding Machine

Workpiece's diameter : 10-120mm

Welding length : ≤500mm

Rotating diameter of workpiece : ≤350mm

Spindle diameter : ≤30mm

Workpiece's weight : ≤30kg

Stroke of torch : 100mm

Angle of Head stock : 0°,30°,45°,60°,90°

3D adjustment range of torch : X:±30mm Y:50mm Z:±30mm

Weight : 280kg

Applicable Industries : Construction works , Advertising Company

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Bearing, Gearbox

Key Selling Points : High Safety Level

Port : ShangHai,China

Contact Now

Product Description

HGT-3C Precision Circumferential Welding Lathes

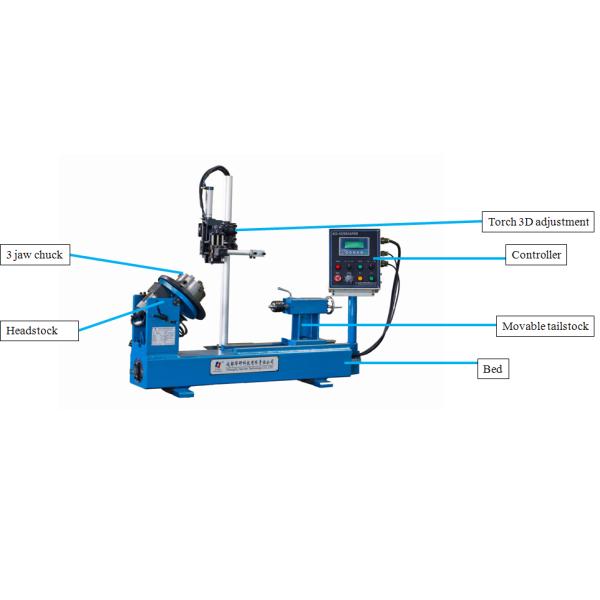

HANYAN's precision weld lathes are designed for welding precision parts and provide superior accuracy and performance. The systems consist of a powered headstock, an adjustable pneumatic tailstock, and an adjustable weld head mounting post that rides on a precision machined base. The headstock rotation and the welding process sequencing are controlled by a PLC control.

Product Name	HGT-3C Automatic Circumferential Seam Welding Bench
Workpiece Diameter	10-120mm
Welding Length	≤500mm
Rotation Speed of Headstock	1-10rpm
Weight of Workpiece	≤30kg
Welding Speed	120-1200mm/min
Stroke of Torch	100mm
Angel of Headstock	0°,30°,45°,60°,90°
3D adjusting range	X:±30mm,Y:±30mm,Z:±50mm
Seam Method	Butt weld,Lap Weld, Tee Weld,Corner Weld,Corner Weld, Edge Weld
Packing Size	6707701220mm
